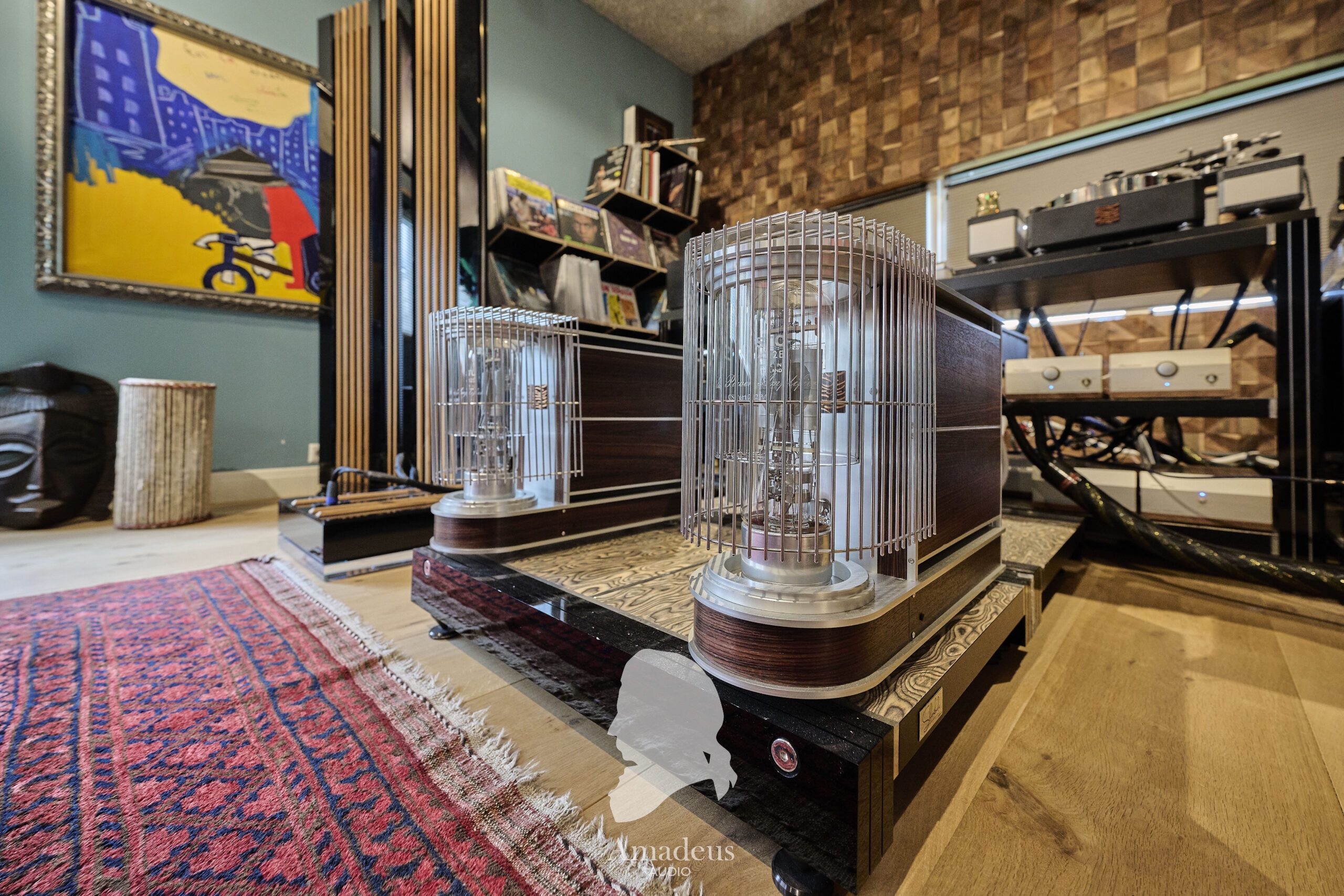

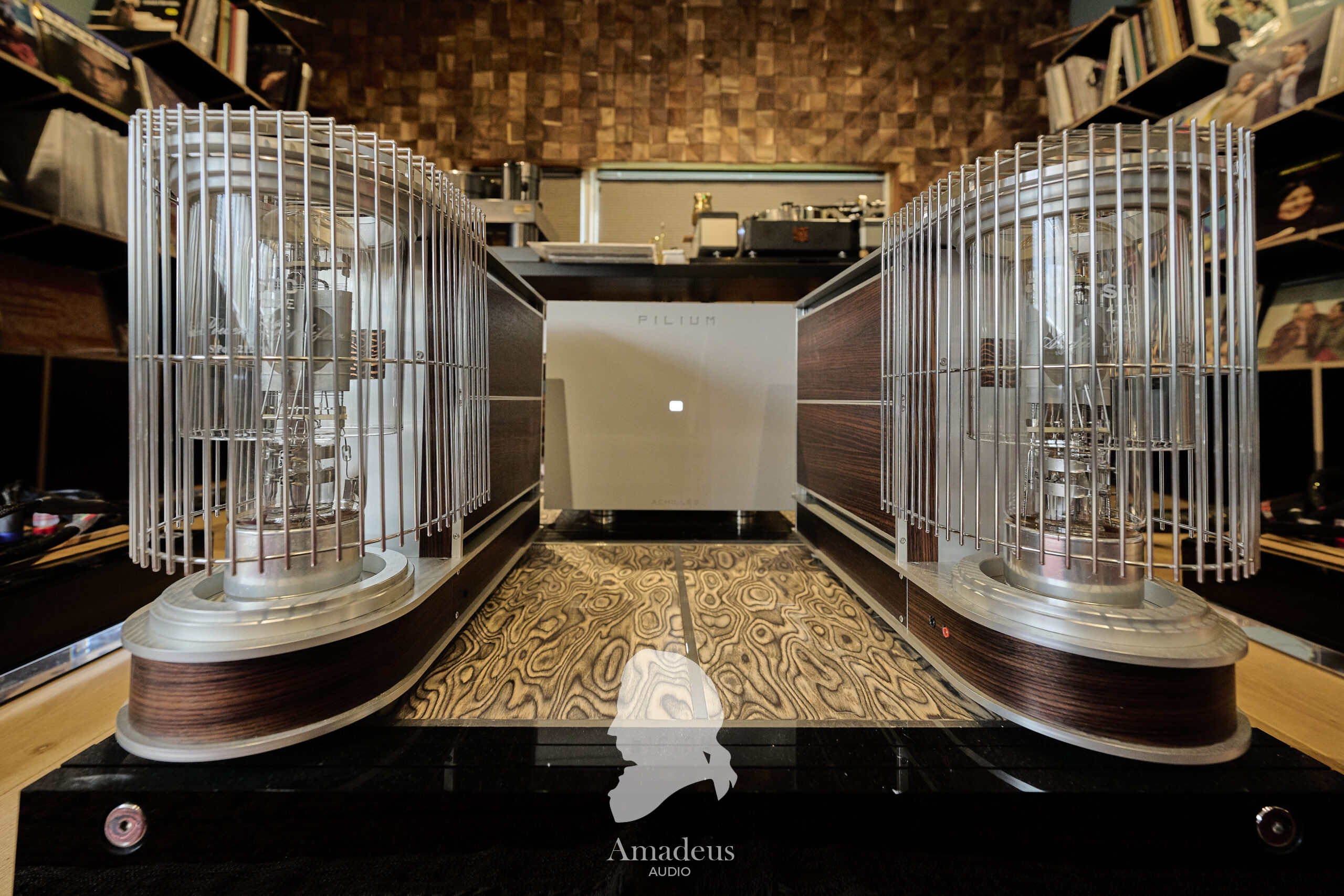

Cs Port PAM2 mono Amps a true Single Ended design whit one 212E Tube 40 Watt class A and this Tube is the Emperor of Single ended Triode output tubes.Can drive most speakers to Live concert levels.
This pair is only used as Demo and original boxes are available.
Also included the price are the 2x STC 4212E Tubes this is a optional upgrade and this NOS tubes only are worth around 4000 euro if you can find them.
Output Power: 40 W (4 , 8 )
Frequency Response: 20 Hz to 40 kHz (-3 dB/20 W)
Total Harmonic Distortion: 1% at 40 W (1 kHz), 0.2% at 10 W (1 kHz)
Signal to Noise Ratio: 90 dB (10 W at 8 )
Input Sensitivity: 1 V (for 40 W output)
Gain: 25 dB (8 )
Damping Factor: 5 or more
NFB: None
Input Impedance: 1.5 k
Input Terminals: Balanced x1, Unbalanced x1
Power Supply: AC 100/120/200/240 V, 50/60 Hz
Power Consumption: 400 W
Dimensions: 188 W 370 H 563 D mm
Weight: 24.5 kg
Chassis Finish: Anodized aluminum with rosewood plates
